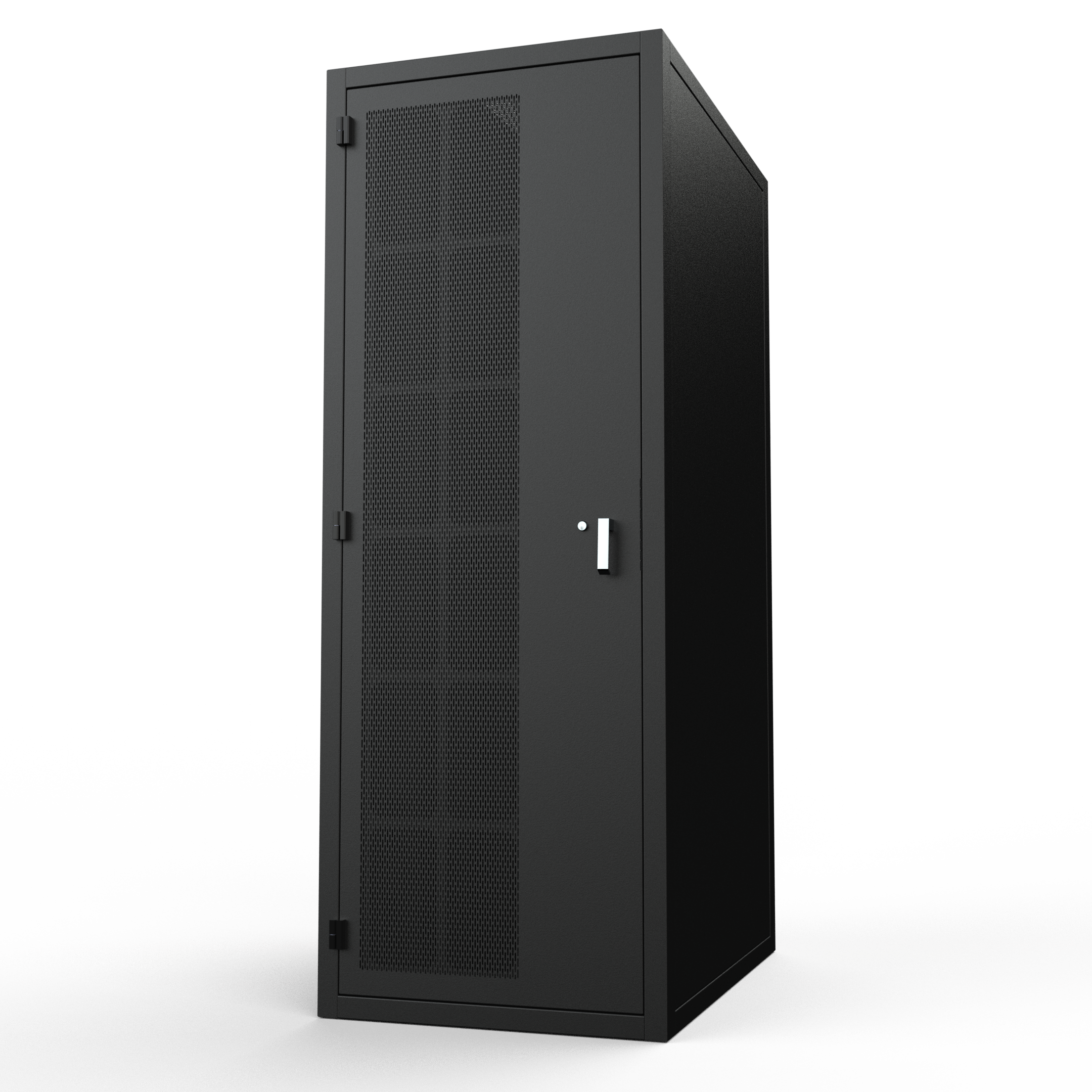

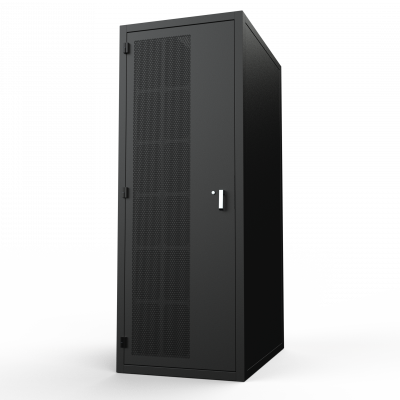

Argent Security Class B & Class C Server Racks

KEY FEATURES AND OPTIONS AVAILABLE

• SCEC endorsed June 2016
• IEC & Industry standard sizes make selection easy
• Custom sizing available
• Perforated doors with 3 point locking. Optional polycarbonate window or solid doors
• Side panels. Optional ventilated side panel
• Wide range of thermal & cable management accessories
• Finish – Powder coat black, other colours available
• KABA Class B digital combination locking mechanism
• Class C - Specified key system

OPTIONAL EXTRAS

• Fan tops (thermostatic control options)
• Scalable Hiflow doors
• Directional fan trays (used at hot spots)
• Cable Management
• Shelving
• Defence sites
• Government Bodies/Departments

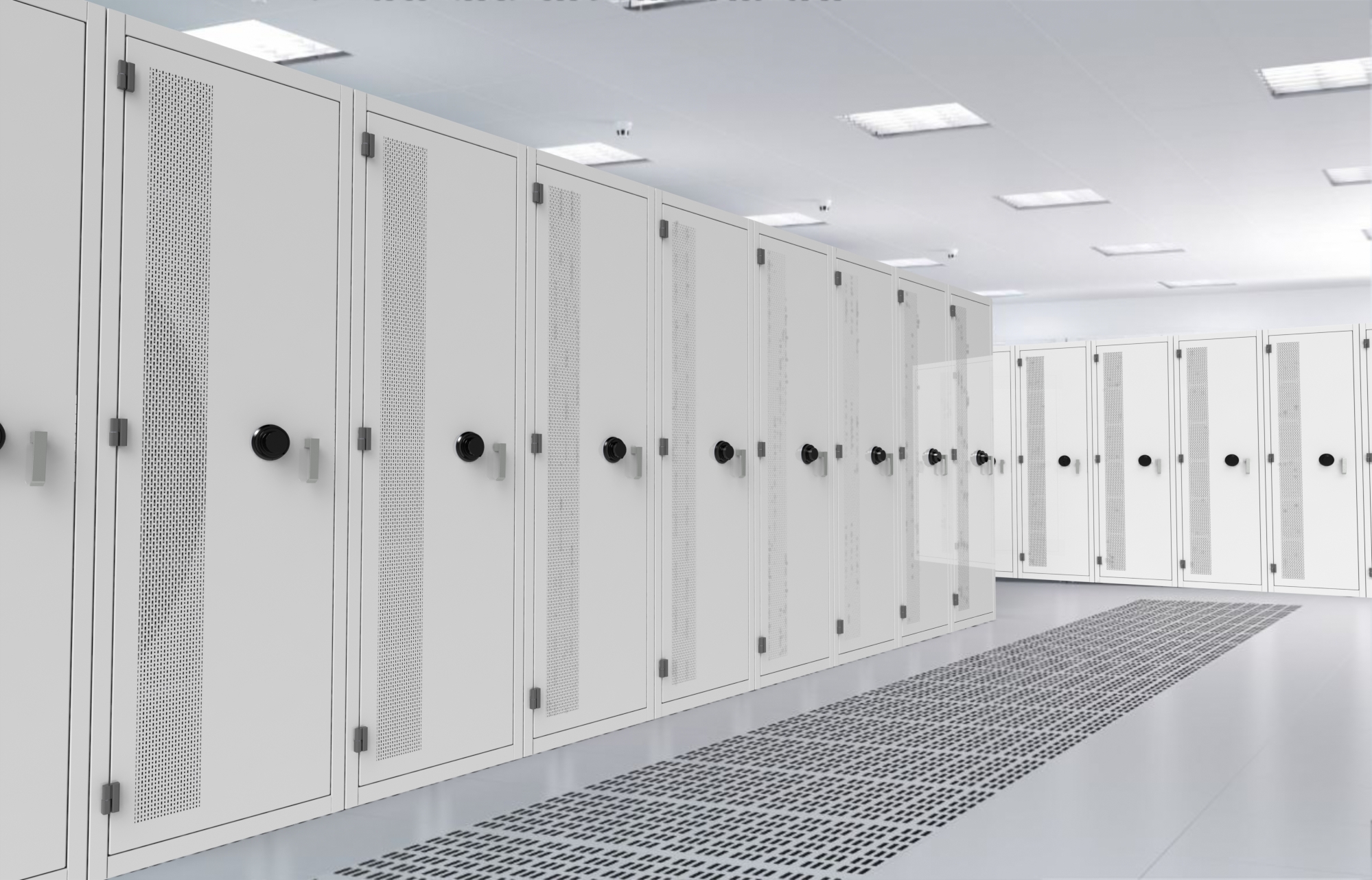

• Secure data server/communication rooms
• Data Centres Secure / High Density

RELATED ACCESSORIES

• PDU’s (tool-less technology), PDU Trays (on request)
• Shelving (19” mounting & cantilever vented and solid fixed & slide out versions)
• Vertical finger cable managers Horizontal Duct & Ring cable managers
• Plinth with leveling feet
• Airdam/Baffle kit for thermal management
• Power distribution units single & three phase
• Air containment system – cold aisle & hot aisle
• Data Security Cages

SCEC APPROVED CABLE ENTRY

• Cable entry into the Argent 50 Series rack is a key component of the SCEC specification
• Argent has extensive experience in design and manufacture of the Class B and Class C enclosures
• VeArgent can assist with options for approved cable entries and help select the best option for the application
• Please contact Argent for more information on this important aspect of a SCEC approved rack

ARGENT SCEC CLASS B & C GUIDE

Selection guide is available on request

SPECIFICATIONS

• B&C Class SCEC Approved Design Rack – IEC 60297
• Available in wall mount series: 6RU / 12RU / 18RU
• Available in free standing series: 18RU / 27RU / 39RU / 42RU / 45RU / 46RU
• Available depths: 700 / 800 / 900 / 1000 / 1050 / 1100 / 1200mm
• Useable Equipment Space – see Height, Width, Depth information below
• Full welded equipment rack for the protection of classified material
• Fully welded zinc anneal steel frame, all panels are made from zinc anneal steel
• Perforated rack doors with 3 point locking (standard option) or solid door or 6mm polycarbonate window
• Perforated rack doors with 3 point locking (standard option) or solid door or 6mm polycarbonate window
• Doors >180 degree opening access
• All side panels are solid form & internally secured
• Comes with 4× Vertical Mounting Angles, RU Labeled
• Racks are individually serialized, name plated with identification with registry record
• Discrete ventilation on side panels (on request)
• 50 pack hardware fixing kits with each rack

STANDARD INCLUSIONS

• Welded steel 4 post frame
• 4× Vertical Mounting Angles
• 2× Cable Trays
• Security Cable Baffle Kits
• 50× Fixing kits

DOORS/LOCK KITS

• Perforated, solid and Polycarbonate doors
• Choice of B or C Class locking mechanisms
• Hinge pins allow easy door removal during maintenance
• Left or Right hinged door options

SIDE PANELS

• Solid side panels

TOP /BOTTOM PANELS

• Includes top and bottom panels

EQUIPMENT SUPPORT

• 2 Pairs of vertical mounting angles in each rack (additional rails available on request)
• RU Labeled angles
• Square punched holes to accept cage nuts
• Chassis support rails (available on request)

LOAD CAPACITY

• 1200kg

OPTIONAL GROUNDING/BONDING

• Earth Bar
• Earth Stud
• Earth wiring cord (component attaching accessory)

CERTIFICATIONS

• SCEC Approved June 2016
• QA Accreditation ISO 9001

MATERIAL

• Steel body, rails, doors & panels (polycarbonate window option to door)

CONSTRUCTION

• Fully Welded Frame
• Mounting angles bolted to frame
• Sides, internally secured
• Doors hinged with secure locking mechanism options

FINISH

• Powder Coat: Black, Other colours available (on request)

SCEC APPROVED CABLE ENTRY

• Cable entry into the Argent 50 Series rack is a critical component of the SCEC specification
• Argent has extensive experience in design and manufacture of the Class B and Class C enclosures
• Argent can assist with options for approved cable entries and help select the best option for the application
• Argent can assist with options for approved cable entries and help select the best option for the application
